Marine transportation safety investigation report M16P0062
Grounding of barges
Tug H.M. Scout towing barges HM Blue Horizon
and HM Tacoma
Victoria, British Columbia
The Transportation Safety Board of Canada (TSB) investigated this occurrence for the purpose of advancing transportation safety. It is not the function of the Board to assign fault or determine civil or criminal liability. This report is not created for use in the context of legal, disciplinary or other proceedings. See Ownership and use of content.
On 02 March 2016, at 1730 Pacific Standard Time, the tug H.M. Scout departed Victoria, British Columbia, en route to Bamberton, British Columbia, with the barges HM Tacoma and HM Blue Horizon in tandem tow. During the passage, the tug encountered severe weather, the tow line between the barges parted, and the HM Blue Horizon grounded near Clover Point, British Columbia. During the recovery attempt, a piece of the parted tow line fouled the tug's propeller, partially disabling the tug. The HM Tacoma subsequently grounded near Finlayson Point, British Columbia, and the disabled tug released the tow line and returned to Victoria. There were no injuries, but some of the scrap construction material from the HM Blue Horizon was lost overboard.
This report is also available in English.
1.0 Factual information
1.1 Particulars of the vessel
|Name of vessel*||H.M. Scout||HM Tacoma||HM Blue Horizon|
|Port of registry||Vancouver, BC||Victoria, BC||Victoria, BC|
|Length||12.01 m||45.56 m||53.34 m|
|Propulsion||1 V-12 diesel engine (387.8 kW) driving a 3‑blade fixed-pitch propeller||Non-propelled||Non-propelled|
|Cargo||Tow||Lifting equipment and construction equipment||Scrap construction materials and piles from a dock|
|Registered owners**||Heavy Metal Marine Ltd., Victoria, BC||Heavy Metal Holdings Ltd., Victoria, BC||Heavy Metal Marine Ltd., Victoria, BC|
|* Names of vessels appear in the report exactly as recorded in the Transport Canada Canadian Register of Vessels or the Small Vessel Register (Commercial).
** The companies are jointly owned by a business development person and an operations person.
1.2 Description of vessels
1.2.1 H.M. Scout

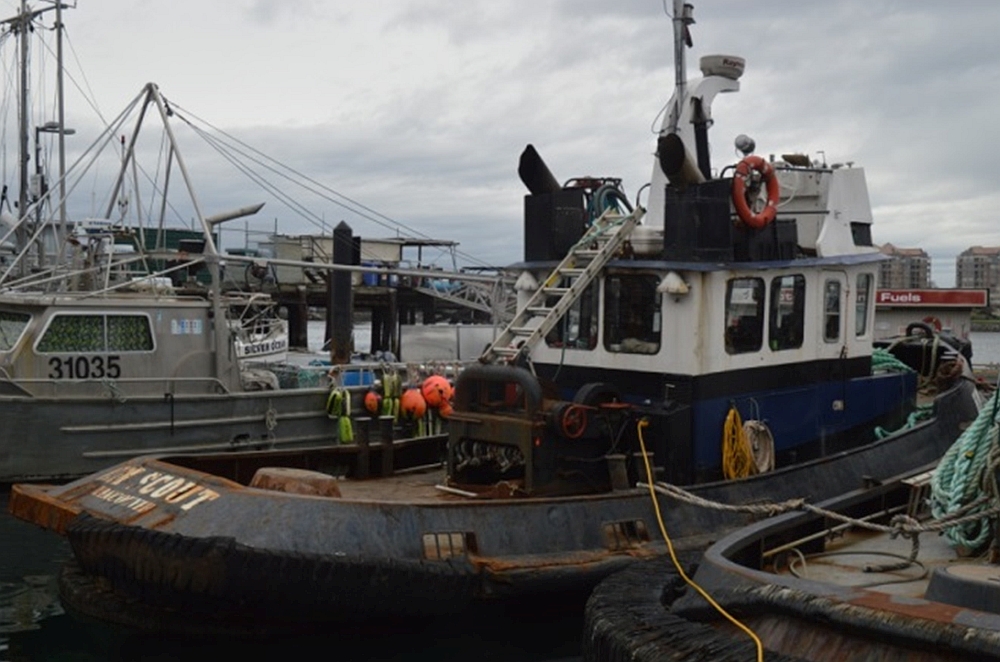

The H.M. Scout (Figure 1) is a single-screw steel hull tug of closed constructionFootnote 1 built in 1961. It has a plumb stemFootnote 2 and rounded transom stern. The hull below the open main deck is subdivided by 3 transverse watertight bulkheads that enclose 4 compartments (from forward): a void space, a crew accommodation space, the engine room, and the lazarette.
The wheelhouse is flush with the main deck and can be accessed via doors on the starboard and port sides. The wheelhouse is equipped with engine controls, an autopilot, radar, a global positioning system (GPS), a very high frequency radiotelephone with digital selective calling (VHF/DSC), and 2 electronic chart display units. There is a conning position on top of the wheelhouse where life-saving equipment such as an emergency position indicating radio beacon (EPIRB), life raft, and life buoys are stowed. The conning position can be accessed via a fixed ladder on the port side of the wheelhouse or a portable ladder secured on the back side of the wheelhouse.
The engine room is accessed through a hatch with a coaming located aft of the wheelhouse at the main deck level. It can also be accessed through the crew accommodation space via a door in the transverse bulkhead. Within the engine room, 2 diesel tanks are located on the port and starboard sides. Above the engine is an expansion tank with a check valve. The expansion tank holds additional coolant for the engine. The engine room alarm panel, located in the wheelhouse, includes low level and high temperature alarms for the engine coolant.
The tug is fitted with a single-drum hydraulically driven towing winch and spooling gear. The winch is operated from the main deck using control levers located on the starboard side of the winch. In an emergency, the winch brake can be released from the main deck, the wheelhouse, or the conning position on top of the wheelhouse.
1.2.2 HM Tacoma

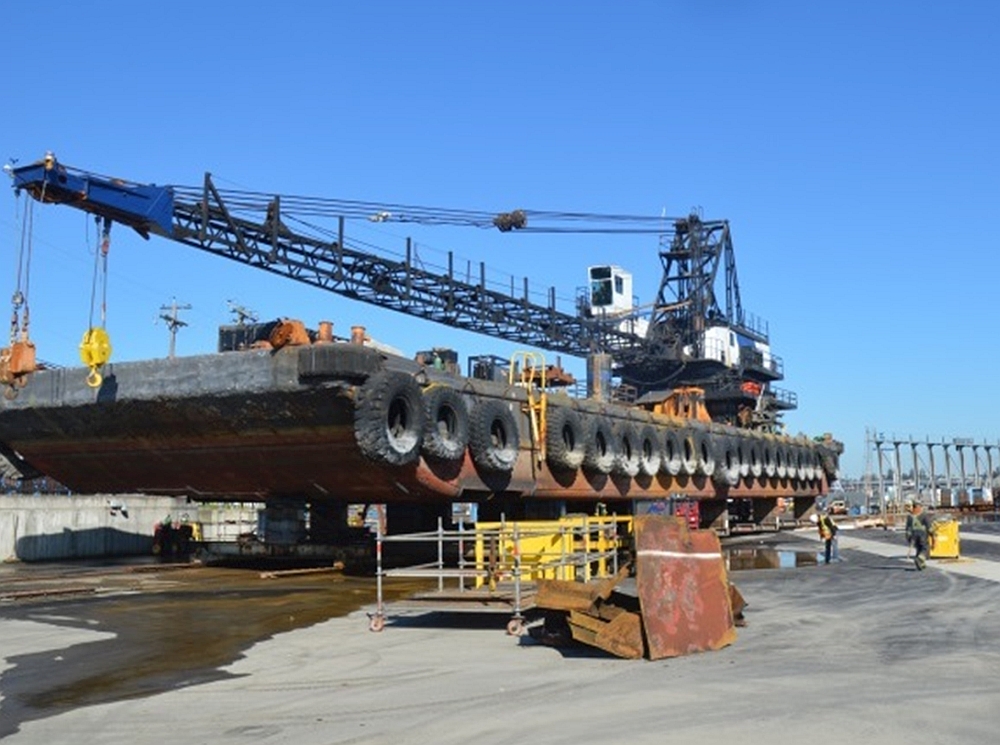

The HM Tacoma (Figure 2) is a welded steel barge with a flat deck and raked bow and stern. The barge is subdivided into 11 compartments by way of 2 longitudinal and 4 transverse watertight bulkheads. A 37‑ton revolving crane is fitted aft and is powered by a diesel engine. Fuel for the diesel engine is stored in an independent storage tank located inside the crane housing.
The barge has 2 steel mooring spuds located on the starboard and port sides. The forward corners of the barge are each fitted with 12‑inch bitts.Footnote 3 These bitts are affixed at an angle (45 degrees from the centreline) to facilitate towing. On the aft end of the barge, there are bitts on both the port and starboard sides. The bitts on the port side are aligned parallel to the vessel's centreline. The aft-most bitt on the port side is 25 cm from the stern. The bitts on the starboard side are aligned perpendicular to the vessel's centreline and are 75 cm from the stern.
At the time of the occurrence, the HM Tacoma had an estimated draft of 1.5 m and a freeboard of 1.55 m. Since it had operated in the United States, the barge had draft marks painted on the hull to comply with United States Coast Guard (USCG) regulations.Footnote 4
1.2.3 HM Blue Horizon

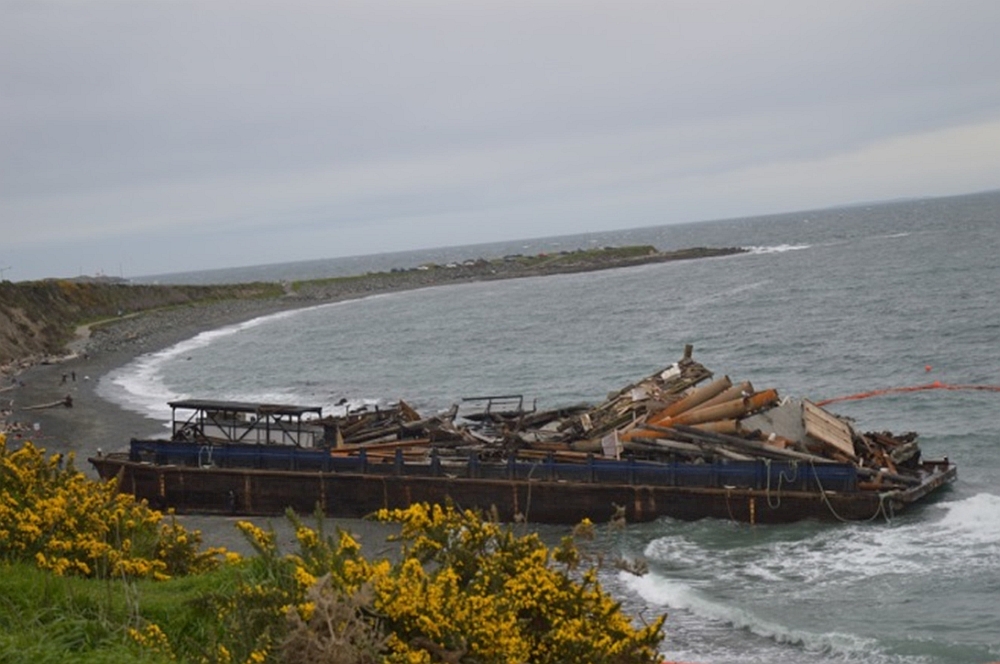

The HM Blue Horizon (Figure 3) is a welded steel barge with a flat deck and raked bow and stern. The barge is subdivided into 8 compartments by way of 1 longitudinal and 4 transverse watertight bulkheads. At the forward end of the barge, there are 8‑inch towing bitts fitted on the port and starboard sides. These bitts are welded at an angle (45 degrees from the barge's centreline) to facilitate towing. There is an 8-inch bitt fitted on each side of the barge's aft end. Ladders are affixed to each side of the barge for boarding and disembarking of personnel.
The barge has a design draft of 2.9 m; the draft marks are not marked on the hull, nor is this required by regulation. At the time of the occurrence, the barge had an estimated draft of 0.6 m and a freeboard of 2.69 m.
1.3 Company operations
The H.M. Scout, HM Tacoma, and HM Blue Horizon are owned by a marine construction and pile driving company that operates out of Bamberton, British Columbia. The company, which has been in operation since 2004, also owns 6 other vessels.
At the time of the occurrence, the company was nearing completion of a contract with a ferry line to upgrade a terminal in the Victoria inner harbour, and was transporting construction materials and equipment from Victoria to Bamberton. The HM Blue Horizon and HM Tacoma had been moored at the terminal to help with construction and storing of scrap material. The tug H.M. Scout was being used to tow barges between Bamberton and the worksite. On the day of the occurrence, the H.M. Scout had towed a smaller company barge from Bamberton to Ogden Point in Victoria, and was returning to Bamberton with the HM Tacoma and HM Blue Horizon.
1.4 History of the voyage
On 02 March 2016, at 1730,Footnote 5 the H.M. Scout, with a master and a deckhand on board, began towing the 2 barges, HM Tacoma and HM Blue Horizon,to Bamberton. Both crew members were wearing personal flotation devices.
About an hour into the voyage, the deckhand noticed that the HM Blue Horizon was no longer aligned behind the HM Tacoma, but was angled off to one side. The deckhand alerted the master and began continuously monitoring the tow. At this time, the tug was on a southeasterly heading with maximum ahead power on the engines, and was making about 1 knot over the ground with a following current. The wind was 37 knotsFootnote 6 from the south-southeast (Appendix A), and the tug and tow were encountering steep waves of approximately 2 to 3 m.
At approximately 1858, the ropes connecting the HM Tacoma and HM Blue Horizon parted. The HM Blue Horizon started drifting toward the shore at Clover Point, which was 0.1 nautical mile (nm) away (Appendix B). The master turned the tug around and, with the HM Tacoma still in tow, began pursuing the HM Blue Horizon. He called the ownerFootnote 7 by cell phone and informed him that he had lost one of the barges. The owner began making calls to find a commercial tug to assist. At approximately 1903, the HM Blue Horizon grounded on the southwest side of Clover Point. At 1905, Marine Communications and Traffic Services (MCTS) attempted to contact the H.M. Scout by VHF radiotelephone but received no reply.

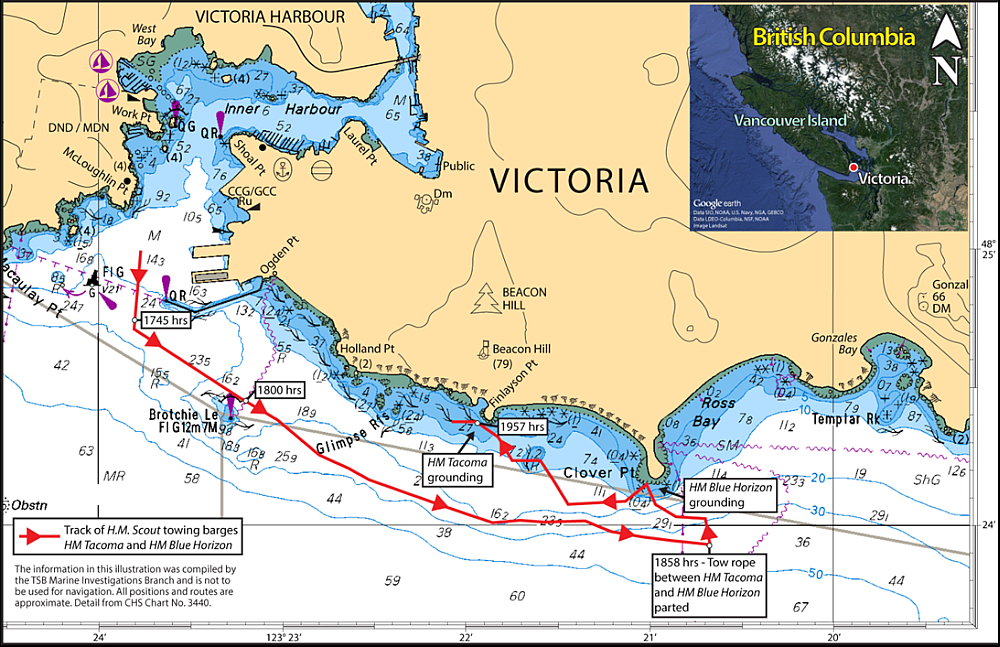

At 1907, the H.M. Scout, with the HM Tacoma in tow, reached the grounded barge. The shallow water and breaking waves along the shore caused the tug to rock violently. The deckhand connected 2 spare rope couplersFootnote 8 together and climbed onto the HM Blue Horizon to connect the barge with the rope couplers. Once the deckhand had reboarded the tug and entered the wheelhouse, the master made an attempt to pull the HM Blue Horizon off the beach; however, the coupler parted during this attempt. The master phoned the owner and informed him that the effort to recover the barge had been unsuccessful.
At approximately 1910, the parted coupler from the recovery attempt slipped overboard and fouled the tug's propeller. The deckhand informed the master and then called the owner on his cell phone to inform him. The tug became partially disabled, with reduced propulsion and steering problems. Soon after, the engine high temperature alarm sounded in the wheelhouse and smoke started emanating from the engine room space. The master instructed the deckhand to enter the engine room space and open the check valve for the main engine coolant expansion tank. Around this time, the sustained wind speed was over 40 knots, gusting to 47 knots.
At 1918, MCTS contacted the tug by VHF radiotelephone.Footnote 9 The master asked MCTS to stand by and, for the next 30 minutes or so, the tug and HM Tacoma were pushed toward the shore at Finlayson Point by inclement weather. Between 1948 and 1953, a series of VHF radiotelephone transmissions ensued between the master and MCTS. MCTS relayed the messages to the Joint Rescue Coordination Centre; it was determined that the master was holding position off Clover Point while waiting for another tug to come out and assist,Footnote 10 that one barge was aground, and that the master was maintaining the other.
At 1953, the master asked MCTS for assistance. The tug and barge were very close to the shore, and around this time, the HM Tacoma went aground. To prevent the tug from grounding as well, the master released the barge's tow wire. The wire did not pay out all the way, so the deckhand manually paid out the remainder. The master called MCTS and reported that the HM Tacoma tow wire had been released and the second barge was aground. The master also reported that the tug engine was overheating and that he was planning to head back to Ogden Point.
Meanwhile, the owner,unable to secure an assist tug,proceeded toward Ogden Point to assist the H.M. Scout on board another company tug, the C07567BC. At 2033, the owner met up with the H.M. Scout at Ogden Point. At this point, the H.M. Scout's engine became inoperable and the C07567BC towed the H.M. Scout to Fisherman's Wharf in Victoria.
On 03 March, the HM Tacoma was pulled off the beach by a commercial tug. The following week, the HM Blue Horizon was lightened up and pulled off the beach by a commercial tug.
1.5 Damage to the vessels
1.5.1 H.M. Scout
Following the occurrence, the tug's main engine was inoperative due to overheating and required a complete overhaul. The propeller shaft was bent and the propeller's blade tips were damaged.
1.5.2 HM Blue Horizon
The barge sustained a breach in the hull, as well as indentation and punctures in several compartments. There was water ingress into the compartments due to the punctures. The skegFootnote 11 was also damaged.
1.5.3 HM Tacoma
The barge sustained indentations and punctures to several compartments and to the skeg. Some of the transverse and longitudinal bulkheads were buckled.
1.6 Environmental conditions
At 1019 and 1548 on the day of the occurrence, Environment and Climate Change Canada had issued a severe weather warning stating that
A frontal system will cross BC waters tonight. Gale to storm force southeasterly winds will prevail over most BC waters tonight ahead of the front. Winds will become gale force southwesterlies behind the front.

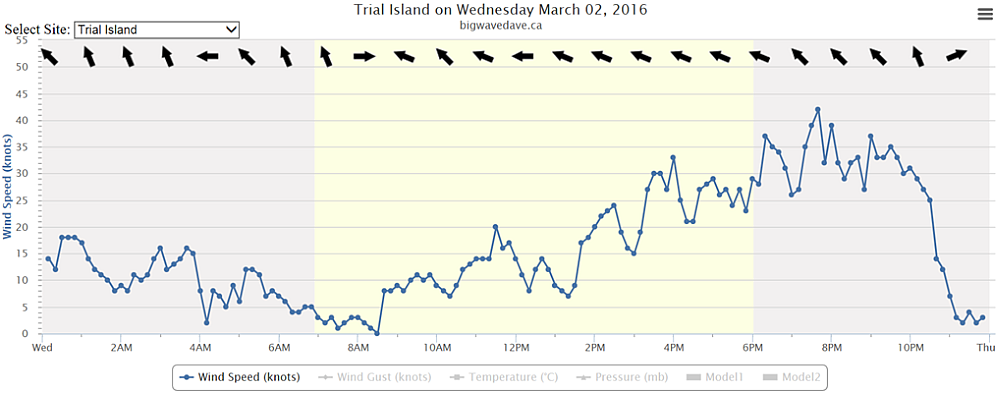

At 1930, the Trial Island lighthouse observation station, located 1.8 nautical miles east‑southeast of Clover Point, recorded a maximum wind speed of 48 knots with sustained winds of 40 knots.
The Tidal Current Atlas indicates that the current along the coast at Clover Point was flooding in an east‑northeasterly direction at 1 knot at the time of this occurrence.Footnote 12
The Gulf Islands and Adjacent Waterways Chart Atlas includes the following cautionary message:
Steep seas dangerous to small vessels when wind opposes strong tidal currents S of Clover Point, Trial Islands, Discovery Island, along E side Discovery Island.Footnote 13
The information in this cautionary message is not noted on the navigation chart or in the sailing directions.
The owner and the master of the H.M. Scout had discussed the weather forecast on the morning of 02 March. They concluded that the protection offered by the Southern Gulf Islands, the southwesterly wind, and the fact that the HM Blue Horizon was lightly loaded would result in the tug and tow making good speed.
1.7 Personnel certification and experience
The master held a certificate to work as master on passenger and towing vessels with a gross tonnage (GT) of less than 60, operating in coastal areas of British Columbia not more than 25 nautical miles from shore. The certificate was issued in 2008 after the master claimed 60 days of sea service as a deckhand on board the tug Donmarel, attended an 80-hour course on navigation safety, and passed an oral examination. The master had been working in the marine industry on the west coast since 2007, and the majority of his experience involved yarding bargesFootnote 14 and handling log sections on the Fraser River.
The master had started working for this company in November 2015.
The deckhand had been working in the coastal towing industry since 2002, primarily towing logs in the Fraser River. The deckhand had joined this company approximately 1 month before the occurrence.
The owner/operator of C07567BC had taken courses on navigation for the Master, Limited for a Vessel of Less than 60 Gross Tonnage certificate, but had not completed the Transport Canada (TC) certification process.
1.8 Vessel certification and inspection
The H.M. Scout was equipped and certified in accordance with existing regulations. As a tug with a GT of less than 15, it was not inspected by TC, nor was it required by regulation to be inspected.
The barges HM Blue Horizon and HM Tacoma were not inspected by TC, nor were they required by regulation to be inspected.
The tug C07567BC was not inspected by TC, nor was it required by regulation to be inspected. TC suspended its small commercial vessel registration in November 2009 due to a change of ownership resulting from the company restructuring, and the company had not subsequently renewed it.
1.9 Safe manning
Under the Marine Personnel Regulations (MPR), the H.M. Scout was required to have at least 2 people on board to maintain the deck watch. Additionally, for emergency situations, sufficient people are required to be on board to simultaneously handle emergency situations such as launching survival craft, handling fire extinguishing equipment, and maintaining communications and a deck watch while under way.Footnote 15
With respect to hours of work and rest, the MPR require masters of Canadian vessels engaged on domestic voyages to ensure that
- the master and every crew member have
- at least six consecutive hours of rest in every 24-hour period, and
- at least 16 hours of rest in every 48-hour period; and
- not more than 18 hours but not less than 6 hours elapse between the end of a rest period and the beginning of the next rest period.Footnote 16
TC publication (TP) 14070E also states that if the vessel does not return to port at night to allow time for rest, at least 2 people who hold the certificate required to operate the vessel must be on board to meet the requirements for the deck watch, in addition to any other personnel required to meet minimum crew requirements.Footnote 17
On the day of the occurrence, the deckhand began work at 0700 and the master began work at 0930. The tug and barge departed Ogden Point at 1730, and the return leg of the voyage was approximately 30 nautical miles. With the tug and tow proceeding at a speed of 1 to 3 knots, the remaining voyage time was estimated at a minimum of 10 hours.
1.10 Preparation for towing and towing arrangements
The owner had prepared the HM Blue Horizon and HM Tacoma to be towed. He used 4 synthetic ropes—2 on the port side and 2 on the starboard side—to connect the forward bitts on the HM Blue Horizon to the aft bitts on the HM Tacoma. The configuration of the bitts on the HM Tacoma was dissimilar, with 1 being closer to the aft end and side of the barge than the other.Footnote 18 The approximate distance between the 2 barges under tow was 1.2 m, with the foredeck of the HM Blue Horizon about 1 m higher than the after deck of the HM Tacoma (Figure 1). The owner then towed the 2 barges in tandem behind the C07567BC within sheltered waters from the ferry terminal in Victoria to Ogden Point. At Ogden Point, the tow was switched over to the H.M. Scout. The deckhand on the H.M. Scout climbed on board the barges to assist with the tow swap.

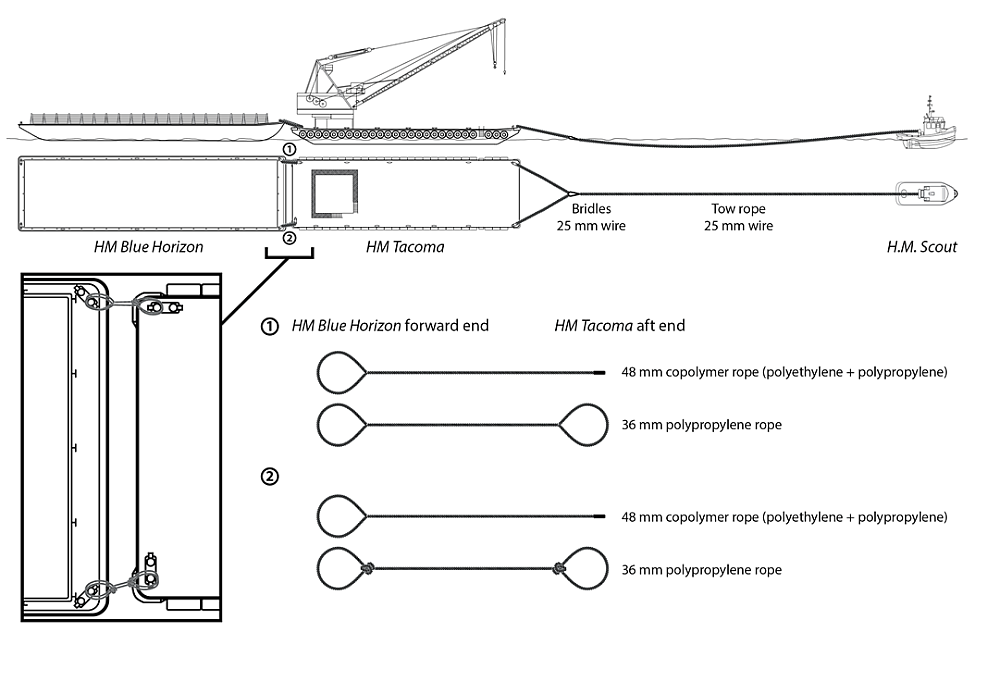

The HM Tacoma was connected to the tug H.M. Scout by a wire tow rope and wire rope bridles. The complete wire tow rope aboard the H.M. Scout was 198 m long, and an unknown length was paid out upon departure from Ogden Point. For benign and sheltered areas, Det Norske Veritas – Germanischer Lloyd (DNV–GL), formerly GL-Noble Denton, recommends that “the minimum deployable length shall not be less than 500 m and shall not include the minimum remaining turns on the winch drum, and the distance from the drum to the stern rail or roller.”Footnote 19
1.11 Guidance on towing arrangements
TC currently has standards with respect to the towing arrangements for oil-carrying barges, but does not have standards for the towing arrangements used with general cargo barges such as the HM Blue Horizon and HM Tacoma. To assist Canadian towing operators, TC advises that they “should use, where appropriate, the annexed International Maritime Organization (IMO) recommendations to supplement Canadian towing measures.”Footnote 20 This guidance is intended for ocean towing but is useful for other types of towing operations as well. The IMO annex, Guidelines for Safe Ocean Towing,Footnote 21 has several recommendations for operators, including the following:
- There should be a contingency plan to cover the onset of adverse weather.
- The towing arrangements and procedures should be such as to reduce to a minimum any danger to personnel during the towing operation.
- The towing arrangements should be suitable for the particular tow and of adequate strength.
- The design and arrangement of towing fittings should take into account both normal and emergency conditions.
- Sufficient spare equipment to completely re-make the towing arrangements should be available, unless impractical.
- Secondary or emergency towing arrangements should be fitted on board the tow so as to be readily recoverable by the towing ship in the event of a failure of the main towing system or ancillary equipment.
- The tow should be at a suitable draft for the intended voyage.
- The tow should not proceed to sea until a satisfactory inspection of the towage has been done by the master or a competent person.
The IMO annex also indicates that, should the tow break adrift and pose a danger to navigation or the coastline, the master of the towing vessel is bound to communicate the information by all means at his disposal to the vessels in the vicinity and to the competent authorities.
Industry guidanceFootnote 22 is also available to assist towing operators with towing best practices, the adequacy of the elements used in a tow, and how to best arrange those elements. According to this guidance, in exposed waters, a long all-wire towing arrangement is preferred. To minimize the surging action between the towed vessels, the tow lines must be of an appropriate length to allow for an adequate catenaryFootnote 23 effect. The catenary effect of the curve of a towing wire of a certain length increases the ability of the tow to absorb the shocks caused by severe environmental conditions, by acting as a kind of spring that relieves peak dynamic tensions.Footnote 24 Synthetic ropes offer no catenary effect and do not dampen the movement of the tow, as the ropes float and are relatively short.

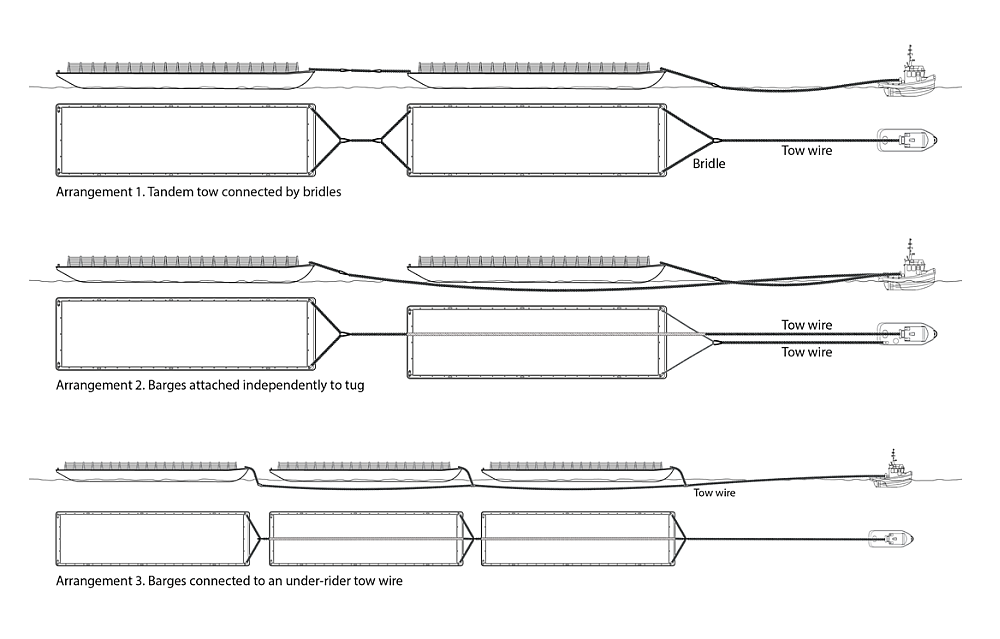

A number of arrangements can be employed when a tug is towing multiple barges in exposed waters; see Appendix C for 3 examples.
With respect to the draft of the barge, DNV–GL guidance recommends that the draft be small enough to give adequate freeboard and stability, and large enough to reduce motions and slamming. Typically, for barge towages, the draft will be between 35% and 60% of hull depth. The guidance also states that the draft should be marked fore and aft in a manner that is readable.
DNV-GL guidance also recommends that a risk assessment be carried out that considers the actual tow arrangement, towed objects, route, and season.Footnote 25
Finally, the Canadian Standards Association (CSA) provides standards and guidance on tow line arrangements. This guidance is intended for the various sea operations involving fixed and floating offshore structures, but is relevant to other types of towing operations as well.Footnote 26
While the guidance from TC is available on its website, relevant sections of industry guidance usually must be purchased by owners/operators. Standardized Canadian guidance is not available to assist towing operators with assessing the suitability of their towing arrangement.
1.12 Towing rope
A number of factors affect a rope's suitability for use in a towing arrangement. These include the rope's age, condition, intended use, minimum breaking strength,Footnote 27 working load limit,Footnote 28 and design factor.Footnote 29 It is good practice for towing operators to regularly inspect rope for signs of aging and wear, and to maintain a log that documents the rope's history of use.Footnote 30
The U.S. Naval Ships Technical Manual provides some guidance on towing rope selection, indicating that non-rotating ropes, such as 12-strand braided ropes or 8-strand plaited ropes, are best suited for towing, and that a double braided rope provides a maximum bearing area that results in more gripping surface and ability to disperse heat and abrasion over a larger area to reduce wear.Footnote 31 The manual also cautions that “three strand ropes are easier to splice and are generally good at withstanding stretching and abrasion; however, they tend to rotate under load, leading to kinking and cockling, and therefore are not recommended as towing hawsers.”Footnote 32 Standardized Canadian guidance is not available to assist towing operators with towing rope selection.
There were 2 types of towing ropes used to connect the HM Blue Horizon and the HM Tacoma. One was a 48 mm twisted copolymer rope and the other was a 36 mm twisted polypropylene rope. Both were of 3-strand right-hand lay.
1.12.1 Post-occurrence examination of towing ropes

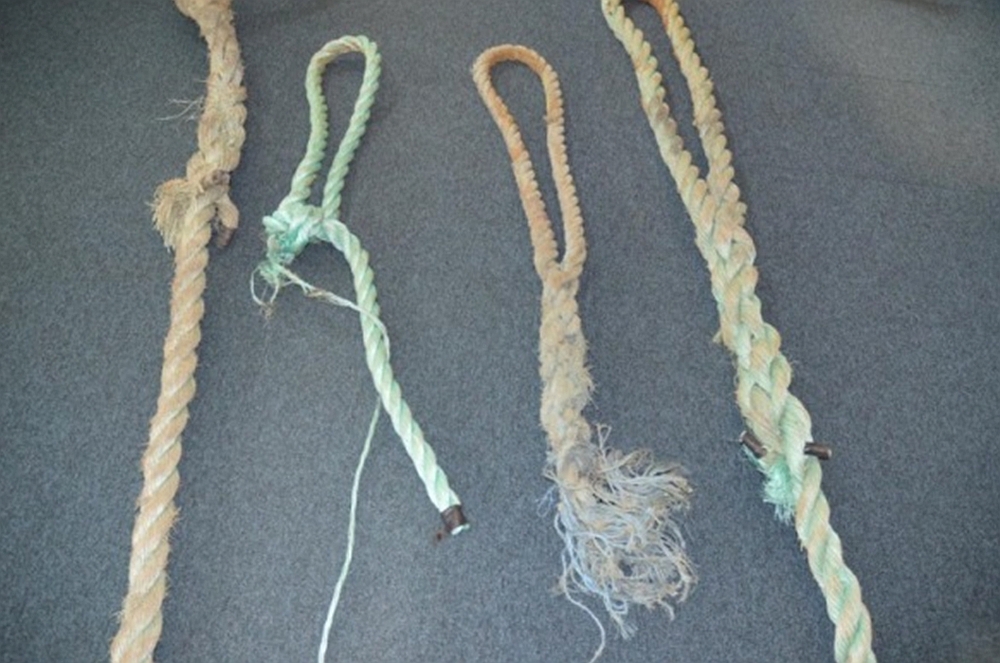

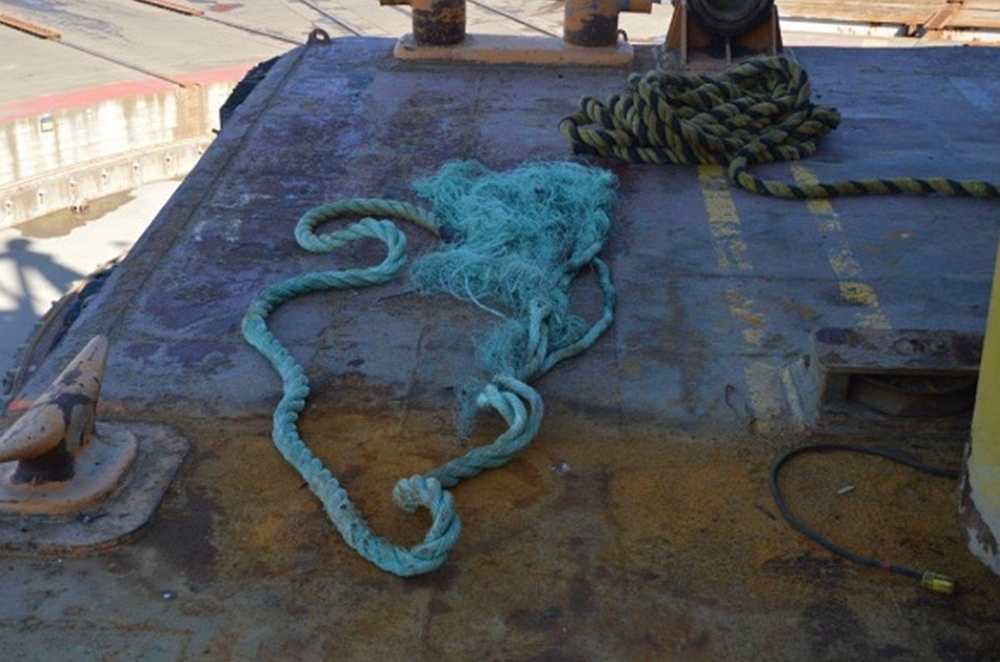

Following the occurrence, the 48 mm copolymer ropes were recovered from the HM Blue Horizon and were sent to a private test facility to check for residual strength.Footnote 33 One of the ropes failed at 16.9 tons and the second rope failed at 12.9 tons. A new 48 mm copolymer rope has a breaking strength of 35.3 tons.

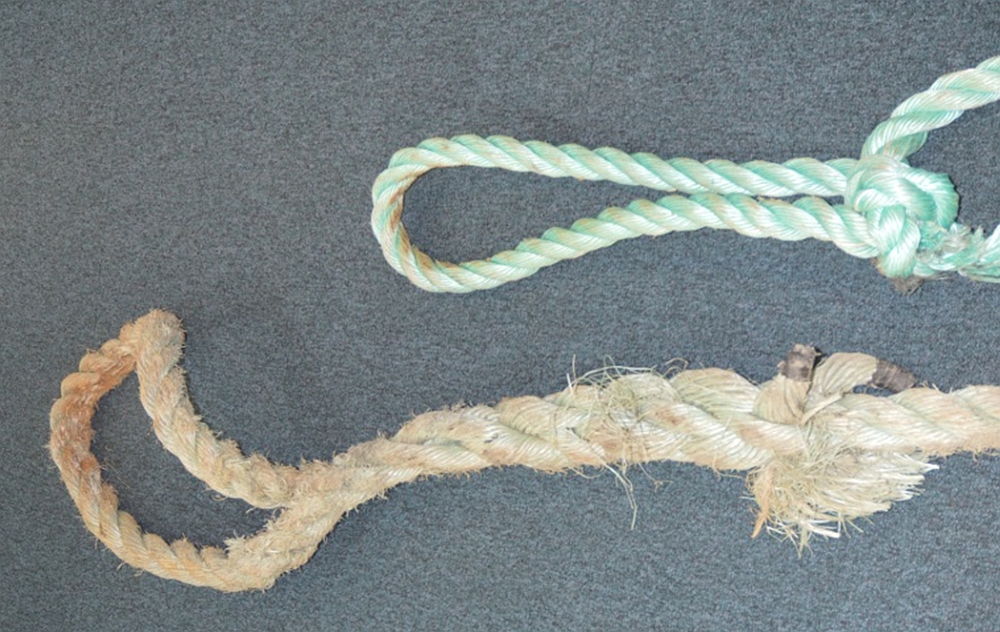

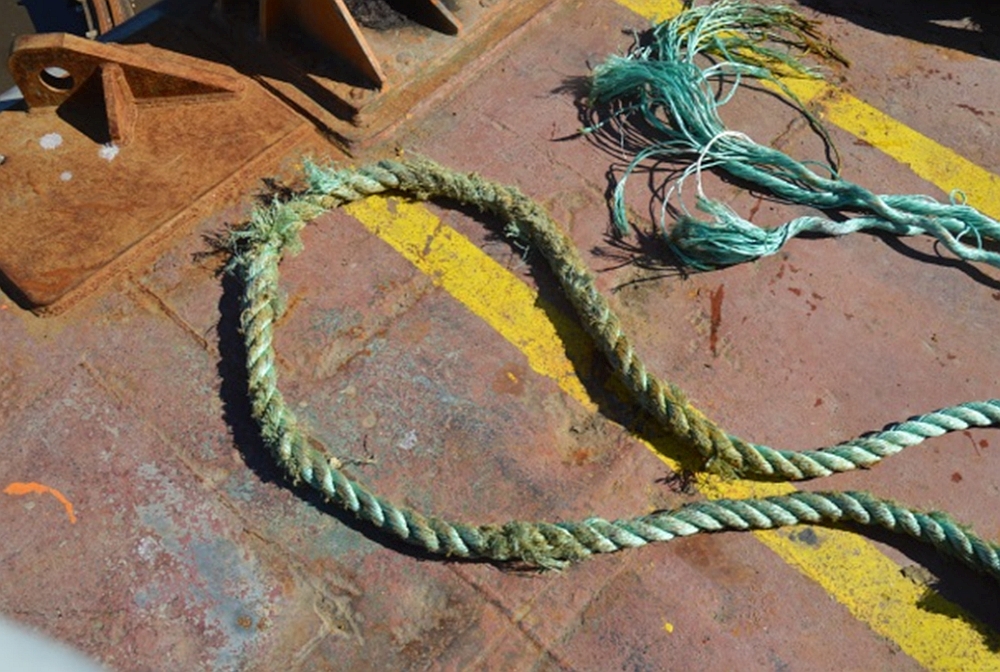

Visually, the ropes appeared weathered and discoloured due to prolonged exposure to sunlight. There were numerous broken filaments all over the rope, which is consistent with abrasion and cyclic tension wear.Footnote 34 The fibres were stiff, brittle, and fused, which is consistent with shock loadFootnote 35 or sustained high load. The eye splices had semi-permanent circular deformation similar to the width of bitts and signs of chafing, fusion, and discolouration where the rope was wrapped around the bitts. The eye splices were intact and the 4 ropes had separated closer to their midpoints than to their eye splices (Appendix D).
The 36 mm polypropylene ropes that were recovered were not of sufficient length to be tested. Visually, the 36 mm ropes showed signs of aging and wear similar to the 48 mm copolymer ropes. One of the 36 mm ropes had a knot in it that was used to make the eye.
1.13 Bollard pull
Bollard pull, which measures a tug's power, is the maximum continuous pull obtained from a tug during a static pull test. Knowing the bollard pull is integral for performing calculations to determine if a tug is sufficiently powered for a particular tow, and for assisting operators in determining the appropriate towing gear.
The H.M. Scout's bollard pull had not been ascertained, nor is there a requirement for it to be ascertained for towing operations of this type. Following the occurrence, the investigation could not determine the bollard pull of the tug because of the damage that the engine and propeller shaft had sustained.
DNV-GL provides guidelines on the recommended bollard pull for tugs. In the absence of a measured bollard pull, DNV-GL recommends estimating the bollard pull as 1 tonne/100 brake horsepower (BHP) of the engines. DNV-GL then suggests that bollard pull be further reduced by 1% per year for a tug of age greater than 10Footnote 36.
The main engine of the H.M. Scout delivered 520 BHP, which calculates to 5.2 tonnes bollard pull. The tug was built in 1961; therefore, in the absence of a measured bollard pull, the investigation estimated the H.M. Scout's bollard pull to be 2.86 tonnes.
1.14 Regulatory oversight
1.14.1 Transport Canada
TC is responsible for ensuring that Canadian-flagged vessels are inspected in accordance with the Canada Shipping Act, 2001 (CSA 2001) and associated regulations. Under the CSA 2001,Footnote 37 a vessel's authorized representative is responsible for
- ensuring the vessel and its machinery and equipment meet the requirements of regulations set out by the CSA 2001;Footnote 38
- developing procedures for the safe operation of the vessel and for dealing with emergencies; and
- ensuring that the crew receive safety training.
Supporting documentation and records must be available to any person or organization authorized under the CSA 2001 to carry out inspections. TC currently does not have an inspection program for general cargo barges or for tugs less than 15 GT.
Marine vessel operations are subject to both provincial and federal jurisdiction. WorkSafeBCFootnote 39 has jurisdiction over the occupational health and safety of provincial employers engaged in marine operations, including general safety equipment and procedures on these vessels, general supervision and training of the crew, and general hazards. Its jurisdiction does not extend to matters relating to the shipping and navigation aspects of such operations. WorkSafeBC's prevention officers provide safety oversight within the framework of provincial WorkSafeBC legislation, and are allocated to offices that are assigned to inspect workplaces within specific geographical areas. The oversight is either planned around identified risk-based work activities or in response to an accident or complaints. Officers provide an inspection report, issue compliance ordersFootnote 40 if safety issues are present, and ensure that the employer submits an investigation report.
WorkSafeBC also promotes safety awareness through Hazard Alerts, information booklets, and a voluntary financial incentive program called the Certificate of Recognition. Employers like the owners of the H.M. Scout can earn a Certificate of Recognition by successfully implementing and maintaining a health and safety management system that exceeds regulatory requirements and meets a set of audited standards.
1.14.3 Tug and barge inspection requirements in the United Kingdom and the United States
In the United Kingdom (UK), small workboats (which include tugs) engaged in commercial activity are regulated under The Merchant Shipping (Small Workboats and Pilot Boats) Regulations 1998 and the Workboat Code.Footnote 41 Under these regulations, vessels under 24 m in length or with less than 150 GT are required to undergo inspection by the certifying authority. A successful inspection results in issuance of a certificate valid for not more than 5 years. In addition, the Code informs owners/managing agents that possession of a certificate of competency, on its own, should not be regarded as evidence of ability to serve in a particular position on a specific vessel. The owner/managing agent must ensure that there are sufficient trained personnel on board to work on the vessel with due regard to the nature and duration of the voyage.
Barges or other floating objects are required to be surveyed, and are issued a Load Line Certificate or exemption certificate for a towed voyage.
The U.S. Coast Guard and Maritime Transportation Act of 2004 reclassified towing vessels as vessels subject to inspection.Footnote 42 Accordingly, the USCG has established comprehensive safety regulations governing the inspection, standards, and safety management system (SMS) of towing vessels 26 feet or more in length. The regulations give owners/managers a choice between 2 inspection regimes:
- A towing SMS option where the routine inspections of towing vessels are performed by third-party organizations
- A Coast Guard inspection option where routine inspections are conducted by the USCG.
1.15 Safety management
The principal objective of an SMS on board a vessel is to ensure safety at sea, prevent human injury or loss of life, and avoid damage to property and the environment. Safety management involves individuals at all levels of an organization and requires that a systematic approach be taken in identifying and mitigating operational risks.
Some elements of an effective SMS are:
- Operating procedures for the vessel and the use of checklists
- Maintenance procedures for the vessel and its associated equipment
- Documentation and record-keeping procedures
- Procedures for identifying hazards and managing risks
- Procedures to prepare for and respond to emergency situations
- Drills, training, and familiarization for the vessel's crew.
The company involved in this occurrence had a health and safety policy for its on-shore and pile driving operations, as required and enforced by WorkSafeBC, but the health and safety policy did not cover marine activities such as towing and yarding of barges, hours of work and rest, hiring and training of employees, or operations. The company did not have written procedures for the safe operation of the vessels or for dealing with emergencies.
In 2010, TC began formal consultations on a regulatory proposal to introduce safety management regulations to Canadian non-convention vessels, including those less than 15 GT. However, industry expressed concerns, primarily regarding costs and feasibility, stating that implementing the new regulations would be too onerous for small companies that operate small vessels. In response to stakeholders' concerns, TC amended its regulatory proposal in 2012 to include only vessels greater than 24 m in length and those carrying more than 50 passengers.Footnote 43
At the national Canadian Marine Advisory Council meeting in November 2014, TC updated industry on the proposed Safety Management Regulations.
These proposed changes would not apply to tugs the size of the H.M. Scout.
1.16 Mandatory vessel reporting
Under the Vessel Traffic Services Zones Regulations, the master of a towing vessel is required to report information such as name, call sign, position, estimated time of entering a Vessel Traffic Service Zone, destination, and estimated time of arrival at destination, and whether dangerous goods or a pollutant are carried on board.Footnote 44 This reporting is so that MCTS has the information readily available in the event of an emergency.
Upon departure, the master called MCTS to inform them about his departure from Victoria and his intended route, but did not inform MCTS about the next reporting point or the fact that the HM Tacoma had 2000 litres of fuel for the crane on board.
The Vessel Traffic Services Zones Regulations further require that a report be made to MCTS as soon as the vessel is involved in a collision, grounding, or striking, or sustains any defect in the vessel's main propulsion systems. The Canadian Coast Guard (CCG) recommends that
in the interest of ensuring the highest level of safety, mariners should immediately notify the CCG, through any MCTS centre, of any situation which is or may be developing into a more serious situation requiring assistance from the SAR [Maritime Search and Rescue] system. The need for the earliest possible alerting of SAR authorities to potential maritime emergencies cannot be over‑emphasized.Footnote 45
In this occurrence, the HM Blue Horizon went aground at 1903, and MCTS was informed 48 minutes later by the master after multiple attempts by MCTS to contact the tug. The H.M. Scout developed propulsion and engine overheating problems at 1910, but informed MCTS after 47 minutes.
The owners began making calls to try and find an assist tug as soon as the barge HM Blue Horizon was adrift. They made multiple calls and were able to establish contact with 3 tug owners/operators who had tugs in the region, but none could get a tug out to assist at short notice.
1.17 Training and certification requirements for towing masters
To work as a towing master on a tug such as the H.M. Scout, a seafarer must hold, at a minimum, a Master, Limited for a Vessel of Less than 60 GT certificate, as well as other required certificates.Footnote 46 To obtain this master's certificate, TC requiresFootnote 47 a candidate to have acquired at least 2 months of sea service on board one or more vessels of a gross tonnage at least equivalent to that of the vessel for which the certificate is sought, on voyages that correspond to those permitted by the certificate being applied for.
The syllabus for the Master, Limited for a Vessel of Less than 60 GT certification covers a number of topics, including navigational skills, operation of the vessel, and dealing with emergency situations. With regard to towing operations, the syllabus includes the following:
- Cables used for towing and their required length
- Towing bitts and hooks
- Events that may result in the capsizing of the tug
- Use of emergency towing line.
In addition to completing the required 2 months of sea time, the candidate must pass a written examination on subject matter appropriate to the area of operation and the type and gross tonnage of the vessel to which the certificate relates, as set out in Examination and Certification of Seafarers.Footnote 48 Candidates must also complete a practical examination on board the vessel. In 2007, however, candidates had the option of either doing a written exam that assessed their knowledge of the syllabus or attending an 80-hour approved course covering the syllabus for the Master, Limited for a Vessel of Less than 60 GT certification.
While completing the required 2 months of sea time, the candidate performs deck duties under the supervision of a certified master(s). There is no specific guidance on the practical tasks to be performed during the sea service, nor does the MPR specify the rank in which the sea service needs to be done, except that it has to be deck service. The MPR states that the 2 months of sea service can be reduced to 1 month of sea service if an approved program of on-board training is taken.
There is currently no on-board training program approved in Canada for this purpose. TC is in the process of developing a transport publication for approved on-board training that will outline the practical tasks to be performed and the criteria for evaluating competence. It will require the signature of the vessel's representative confirming that the required competence has been achieved.
The on-board training program will provide the candidate with a reduction of sea service, but will not exempt the candidate from examinations. This program consists of on‑board practical work and theoretical learning that prepares the candidate for TC examinations. On completion of on-board training, the candidate may need additional classroom courses to pass the required TC examinations.
The UK already has a framework in place so that operators provide training according to established guidance based on specific skills required for towing vessels. The British Tugowners Association, in agreement with UK's Maritime and Coastguard Agency, has launched the Tug Training Record Book and Apprenticeships Scheme.Footnote 49 This requires candidates to complete specific towing tasks before becoming eligible to obtain a tugboat certificate and establishes a training record book for tug masters that can be used to demonstrate experience in towing operations.
1.18 Previous occurrences
Since 2013, at least 6 other occurrencesFootnote 50 involving failure of towing gear that resulted in loss of tow(s) have been reported to the Transportation Safety Board of Canada (TSB). The TSB conducted investigations into 2 of these occurrences, involving the tugs Andre H. and Charlene Hunt.
In December 2013, the tug Andre H. was towing a barge and 2 service vessels—I.V. No. 8, I.V. No. 9, and I.V. No. 10—one behind the other. During the transit through the Gulf of St. Lawrence, the weather worsened and the couplers connecting I.V. No. 9 to the stern of I.V. No. 8 parted. I.V. No. 9 and I.V. No. 10 broke free and later went aground near L'Anse Pleureuse, Quebec. No injuries or pollution were reported. The investigationFootnote 51 found that
- the towing arrangement was inadequate for the environmental and operational conditions. The synthetic rope couplers employed in the towing arrangement were in a degraded condition, and they parted during the voyage; and
- the master underestimated the risk posed by the northeasterly winds forecast for the area and chose to continue the voyage.
In January 2013, the tug Charlene Hunt lost its tow off Cape Race, Newfoundland and Labrador, when the towing arrangement failed in heavy weather. The investigationFootnote 52 found that
- the available guidelines respecting the design and construction of towing arrangements were not followed;
- the towing arrangement was inadequate for the intended voyage; and
- the relief master did not adequately prepare to compensate for the environmental conditions that were encountered.
In that investigation, the TSB also found that TC had developed a draft policy on the inspections of tugs and tows bound for international voyages out of Canada. The policy provides TC inspectors with a framework to assess the tugs and tows, and specifies that TC would assess each towing operation to ensure compliance with sections 111 and 189 of the CSA 2001.
Another similar occurrence took place in British Columbia in November 2004, when the tug Manson, with a crew of 2, was towing the crane barge McKenzie and the deck barge M.B.D. 32. During the transit through the Strait of Georgia, British Columbia, the couplers connecting the M.B.D. 32 to the stern of the McKenzie parted, and the Manson was unable to recover the M.B.D. 32. The Manson capsized and sank, with the loss of both crew members. The TSB investigationFootnote 53 found that
- the towing arrangement was inadequate; and
- the use of shorter, synthetic rope couplers instead of a longer all-wire arrangement, while towing in open waters, resulted in the parting of the couplers.
1.19 TSB Watchlist
The TSB Watchlist identifies the key safety issues that need to be addressed to make Canada's transportation system even safer.
Safety management and oversight is a Watchlist 2016 issue. As this occurrence demonstrates, some transportation companies are not managing their safety risks effectively, and many are not required to have formal safety management processes in place. Transport Canada oversight and intervention have not always been effective at changing companies' unsafe operating practices. The solution will require all operators in the marine industry to have formal safety management processes, with oversight by TC. When companies are unable to effectively manage safety, TC must not only intervene, but do so in a manner that succeeds in changing unsafe operating practices.
Safety management and oversight will remain on the TSB Watchlist until
- Transport Canada implements regulations requiring all commercial operators in the air and marine industries to have formal safety management processes and effectively oversees these processes;
- transportation companies that do have SMS demonstrate that it is working—that hazards are being identified and effective risk-mitigation measures are being implemented; and
- Transport Canada not only intervenes when companies are unable to manage safety effectively, but does so in a way that succeeds in changing unsafe operating practices.
2.1 Factors leading to the grounding of the barges
The H.M. Scout departed Victoria with the HM Tacoma and HM Blue Horizon in tandem tow. The 2 barges were connected using short, degraded synthetic fibre ropes of different diameter, length, and material. The ropes were made fast to bitts that were not aligned properly for towing and were not equidistant from the HM Tacoma's hull. The tow line between the tug and the first barge was also too short and did not provide catenary to dampen the effects of the dynamic motions between the tug and barge.
Gale- to storm-force southeasterly winds had been forecasted in the area of the occurrence since the early morning of 02 March, and the Trial Island weather station recorded sustained winds in excess of 30 knots for most of the afternoon. Additionally, the tidal current was flowing counter to the direction of the wind. The effect of the wind and countercurrent produced large, steep waves that the tug and tow encountered.
During the earlier inbound voyage to Ogden Point, the tug was towing just 1 smaller barge and the wind was on its stern, allowing it to make good speed. Because at that time the tug and tow were proceeding in the same general direction as the deteriorating sea conditions, the worsening conditions may not have been apparent to the crew. On the return voyage, however, the tug was towing a heavier load against the weather and was making slow progress through the water just before the occurrence.
Although the master and the owner had discussed the feasibility of the voyage and had made a casual assessment of the weather prior to departure, they did not use a formal method to assess the risks associated with this voyage. As a consequence, they did not appreciate the combined effect of the wind and waves on the 2 barges that were of a different size, deadweight, draft, and freeboard, nor did they identify the inadequacies in the towing equipment that allowed the HM Blue Horizon to break free and drift away.
Further, without emergency procedures for loss of tow, the master pursued and attempted to recover the HM Blue Horizon with the HM Tacoma still in tow without full consideration of the risks this might entail (for example, girding, capsizing, grounding). Because there was no emergency towing equipment on board, the deckhand devised a makeshift emergency towing arrangement that was insufficient for the recovery operation. Additionally, the efforts to recover the tow placed the deckhand at risk: he had to climb between the tug and barge in rough seas to fasten both parts of the towing arrangement, and he had to go out on the tug's open deck where the HM Tacoma's wire tow rope was located. Without a contingency plan to guide the crew's actions, they made ad hoc decisions and placed themselves at risk in attempting to recover the HM Blue Horizon.
The parted towing rope fouled the tug's propeller, causing the engine to overheat. With reduced propulsion and the HM Tacoma in tow, the tug was pushed toward the shore at Finlayson Point by the sea conditions. Thirty minutes later, the HM Tacoma grounded. The partially disabled H.M. Scout aborted the tow to avoid grounding as well, and returned to Victoria leaving both barges aground.
During this time, the master updated the ownerFootnote 54 regularly, yet neither of the 2 owners nor the master informed MCTS of the developing situation. Informing MCTS at an early stage would have allowed the Canadian Coast Guard to deploy resources for assistance.
2.2 Adequacy of the towing arrangement
Vessels experience a variety of motions that include pitching, rolling, yawing, surging, heaving, and swaying while under way at sea. These dynamic motions are more pronounced in severe wind or waves of changing height and frequency. In towing operations, each vessel experiences these motions independently of the other(s), causing complex tensile forces on the towing gear, in addition to the existing tension from towing. Dynamic forces can be extreme and can cause tow line failure, even if the average tension for towing is within acceptable limits at the beginning of the voyage.Footnote 55 To ensure a safe passage, the gear used to connect a tug with its tow needs to be strong, yet flexible enough to withstand the forces likely to be encountered during a voyage.
In this occurrence, there were a number of issues with the towing arrangements that compromised the safety of the towing operation:
- Short, 3-strand synthetic fibre ropes (copolymer and polypropylene) were used.
- The synthetic fibre ropes were in poor condition.
- The towing bitts on the HM Tacoma were fitted dissimilarly, making it difficult for the crew to ensure that the ropes were of equal length and therefore that the load was distributed equally.
- The length of the tow wire between the tug and the HM Tacoma did not allow for sufficient catenary.
- The ropes between the barges did not allow for sufficient catenary.
- The tug's bollard pull had not been established, nor had the towing force of the barges been calculated to assess whether the tug and tow could safely complete the voyage in the forecasted weather conditions.
The towing arrangement was determined by the owner, who held no formal marine certifications and had not referred to industry guidance for towing operators. Although the arrangement may have been adequate for navigating the short voyage from the ferry terminal in Victoria's inner harbour to Ogden Point in sheltered waters, there was no consideration given to changing the towing arrangement based on the environmental conditions and sea states that the tug and tow might encounter on the voyage to Bamberton, nor were there company procedures requiring this to be done. Without an overall assessment of the adequacy of the towing arrangement for the forecasted voyage conditions, an inadequate towing arrangement was used. If towing vessel owners and operators do not implement procedures and do not adopt standards to ensure the adequacy of their towing arrangement and the condition of their towing equipment, there is an increased risk of the towing equipment failing, resulting in the loss of tow.
Since 2013, the TSB has identified at least 6 other occurrences where the adequacy of towing arrangements has been a factor. Specifically, the investigations determined that the towing arrangements were inadequate for the environmental and operational conditions encountered, and that the towing arrangements used components that were in a degraded condition.
If TC does not provide easily understandable standards and guidance to assist towing vessel owners and operators to ensure the adequacy of their towing arrangement and the condition of their towing equipment, including the selection of tow ropes, there is an increased risk of the towing equipment failing, resulting in the loss of tow.
2.3 Managing risk in towing operations
Towing operations are subject to unique risks that must be managed effectively to ensure the safety of the vessel, the crew, and the environment. To assist in managing risk, it is the company's responsibility to develop safe operating procedures, establish emergency procedures, and provide the crew with the guidance necessary to assess each specific towing operation for risk. As industry guidance recommends, this assessment should consider the actual tow arrangement, towed objects, route, and season.Footnote 56
In this occurrence, the company had not developed any documented procedures or guidance for its marine operations, which left the crew without the benefit of
- procedures, standards, and/or checklists to assess the adequacy of the towing arrangement for the voyage. This may cover items such as required catenary, the type or condition of tow wire, the rope securing arrangements, the tug–tow match, an evaluation of the effects of windage and water resistance on a tandem tow, etc.;
- emergency procedures and a contingency plan to follow in the event of a loss of tow or loss of engine propulsion situation. This may include items such as an emergency contact list and the procedure for notifying rescue services in the event of an emergency;
- emergency equipment and a contingency plan, including guidance or checklists for signalling distress;
- a means to assist masters in the decision-making process for routine and extraordinary circumstances, as well as a master's responsibility and authority statement, which provides the master with the authority to take the measures necessary to ensure the safety of the crew and the vessel; and
- a process for documenting the working history of the components, such as the ropes, that were employed in the towing arrangement.
While the owner and master had informally considered the potential effects of the weather and current on the tug and tow for the occurrence voyage, a more systematic approach to risk management might have helped them obtain a better understanding of the risks. A systematic approach would involve identifying, analyzing, and correlating the combined effects of the operating environment, the condition of the towing arrangement, the availability of rescue services, and the potential consequences of an accident. At this point, risk elimination or mitigation strategies, such as delaying departure until the weather improved, changing the towing arrangement, or towing a single barge, could be employed.
One method for assessing and managing risk in marine operations is a safety management system (SMS). Although widely recognized as being effective for risk management, SMS are not required on all vessels. Tug and barge operations are currently not required to operate under SMS despite the fact that the combined size and tonnage of the vessels may be similar to that of a conventional cargo-carrying vessel, and the risks associated with such an operation can be greater given the complexities of connecting and operating the tug–barge combinations. In this occurrence, an SMS may have been useful to help the company identify and manage risks present in their marine operations.
If a comprehensive risk assessment of a towing operation is not carried out, there is a risk that hazards that endanger the tug and tow, the crew, and the environment may go unidentified.
2.4 Minimum safe manning
A minimum safe manning document is based on a TC evaluation of the vessel that determines the vessel's crewing requirements, including the minimum required complement and competency requirements for each crew member. The determination of the minimum complement of a vessel is based on the requirements of the MPR. Inspected vessels with a GT of more than 15 are required to comply with a minimum safe manning document.Footnote 57
In contrast, tugs less than 15 GT are not inspected, nor are they required to have a minimum safe manning document. Instead, TC leaves the authorized representative to determine how many additional crew are needed on board to operate the vessel safely and deal with an emergency. However, existing guidance on minimum manning is cumbersome and difficult to follow for operators with limited knowledge of the MPR and limited resources at their disposal. In this occurrence, the MPR required the H.M. Scout to have a minimum of 2 people aboard, and it was the practice for the tug and tow to be operated with a crew of 2: the master and a deckhand.
For the occurrence voyage, there was no indication that the company had done an assessment to determine if more than the minimum number of crew members was required for the operation involving a tandem tow in severe weather conditions. This meant that the tug and tow departed with the usual complement of 2.
During the recovery attempt of the HM Blue Horizon, the deckhand left the tug and boarded the barge in darkness, alone, and in rough weather conditions to attach the couplers to the barge. Meanwhile, the master was alone on the tug while manoeuvring in rough sea conditions in close proximity to land, as well as tending to the mooring wire of the HM Tacoma, which was still under tow. In the event that something had gone wrong on either the tug or the barge, neither crew member was in a position to quickly assist the other. Also, there was no consideration given to work and rest hours to ensure compliance with the MPR. In the event that the tug and tow had been able to continue the estimated 10-hour return voyage to Bamberton, the total time in operation since commencing work in Bamberton that morning would have been approximately 22 hours, and they would have required additional certificated crew.
TC leaves the safe manning of tugs less than 15 GT to authorized representatives without providing clear guidance about how to determine the number of crew required. As a result, circumstances may arise where the minimum crew are not able to effectively manage a developing emergency, especially when complicating factors emerge, such as adverse weather. Further, there is a possibility that commercial factors or other operational considerations override concerns about safety, resulting in situations where vessels are operating with an insufficient number of crew.
In the absence of safe manning requirements presented in a simple, clear, and practicable format for end users, especially those who operate vessels that are not routinely inspected, there is a risk that vessels will proceed to sea with an inadequate number of crew on board.
2.5 Regulatory oversight
Owners and operators of small commercial vessels in domestic waters are subject to regulations from different government regulators. While each regulator encourages operators to be proactive in complying with regulations, regulators must also intervene periodically to ensure that vessel owners and operators comply with the safety-critical regulations concerning their respective fields. Although TC and WorkSafeBC both regulate marine vessel operations for their respective areas of jurisdiction, neither has an inspection program in place to check that owners and operators of tugs less than 15 GT are complying with safety-critical regulations.
In this occurrence, there were a number of shortcomings with respect to the company's adherence to regulatory requirements. For example:
- The company had not provided written safe operating procedures as required by the CSA 2001.
- The C07567BC was being operated despite its registration being suspended.
- The owner operating the C07567BC did not hold the required operating certificate for this type of vessel.
- The pyrotechnics on the H.M. Scout were past their expiry date.
- The fire extinguishers on the HM Tacoma were in poor condition, with overdue inspection stamps.
- There was a portable ladder at the back side of the wheelhouse secured in a manner that may have impeded the life raft from floating free in an emergency.
If tugs with a GT of less than 15 are not subject to adequate regulatory oversight to ensure compliance with regulations, there is a risk that shortcomings in operations will go unresolved.
2.6 Practical training for towing masters
The investigation determined that the on-board training regimen for a Master, Limited for a Vessel of Less than 60 GT certificate does not provide any structure for the content to be covered during a candidate's 2 months of required sea time. Although candidates must also pass a written and practical exam, the lack of structure for the 2 months of sea time means that the tasks involved in practical training could differ significantly from one candidate to another, and that some candidates may get only a minimal amount of practical experience in certain tasks, such as towing.
Recognizing the risks associated with unstructured practical training, the UK established the Tug Training Record Book and Apprenticeships Scheme, whereby candidates must complete specific tasks before being issued a tugboat certificate. TC has also recognized that this gap exists in the current training regimen and is in the process of developing a similar training regimen.
If the training regimen for marine personnel does not require candidates to obtain specific practical experience in the operations permitted by the certificate, and does not verify that candidates have gained this knowledge, there is a risk that certificate holders will be limited in their knowledge and ability to safely carry out these operations.
3.1 Findings as to causes and contributing factors
- The master and owner, operating without procedures or a systematic assessment of the risks, unintentionally made decisions that contributed to the barges going aground.
- The overall adequacy of the towing arrangement had not been assessed in the context of the voyage conditions and an inadequate towing arrangement was used.
- The tug and tow encountered the forecasted gale-force winds and rough sea conditions, and the combined forces of these movements caused the ropes between the barges to part; the HM Blue Horizon drifted free and went aground.
- There was no contingency plan to guide the crew, so they made ad hoc decisions and placed themselves at risk in the attempt to recover the HM Blue Horizon.
- During the recovery attempt, a rope fouled the tug's propeller and partially disabled the vessel; the tug and HM Tacoma drifted toward the shoreline and the barge grounded.
- The master requested assistance from Marine Communications and Traffic Services when the tug was at risk of grounding, but the timing of this request prevented resources from possibly being able to assist.
- The partially disabled H.M. Scout aborted the tow of the grounded HM Tacoma in order to avoid grounding.
3.2 Findings as to risk
- If towing vessel owners and operators do not implement procedures and do not adopt standards to ensure the adequacy of their towing arrangement and the condition of their towing equipment, there is an increased risk of the towing equipment failing, resulting in the loss of tow.
- If TC does not provide easily understandable standards and guidance to assist towing vessel owners and operators to ensure the adequacy of their towing arrangement and the condition of their towing equipment, including the selection of tow ropes, there is an increased risk of the towing equipment failing, resulting in the loss of tow.
- If a comprehensive risk assessment of a towing operation is not carried out, there is a risk that hazards that endanger the tug and tow, the crew, and the environment may go unidentified.
- In the absence of safe manning requirements presented in a simple, clear, and practicable format for end users, especially those who operate vessels that are not routinely inspected, there is a risk that vessels will proceed to sea with an inadequate number of crew on board.
- If tugs with a gross tonnage of less than 15 are not subject to adequate regulatory oversight to ensure compliance with regulations, there is a risk that shortcomings in operations will go unresolved.
- If the training regimen for marine personnel does not require candidates to obtain specific practical experience in the operations permitted by the certificate, and does not verify that the candidates have gained this knowledge, there is a risk that certificate holders will be limited in their knowledge and ability to safely carry out these operations.
This report concludes the Transportation Safety Board's investigation into this occurrence. Consequently, the Board authorized the release of this report on . It was officially released on .
